For full technical details please see the pdf .

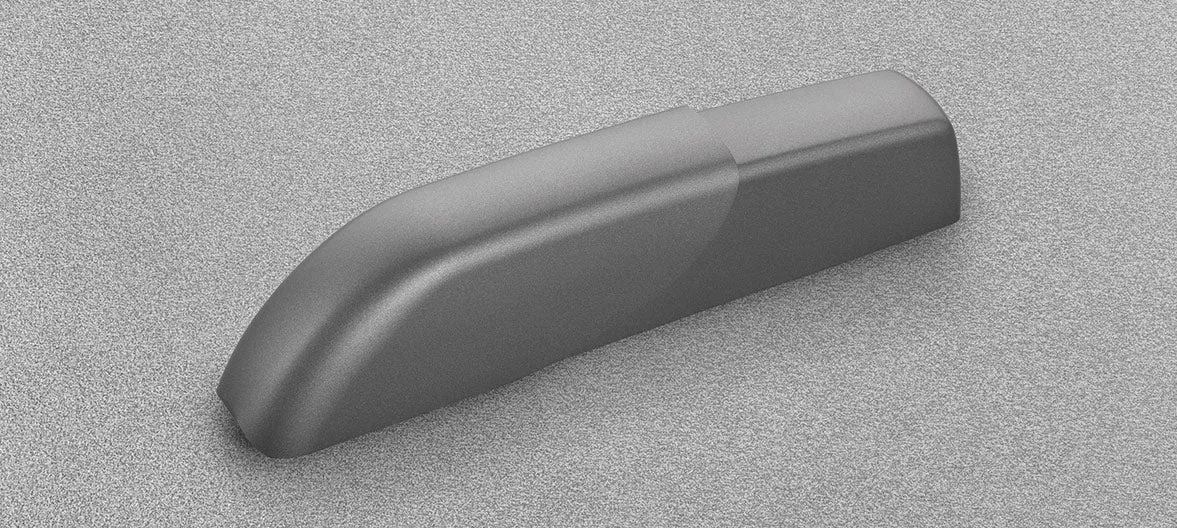

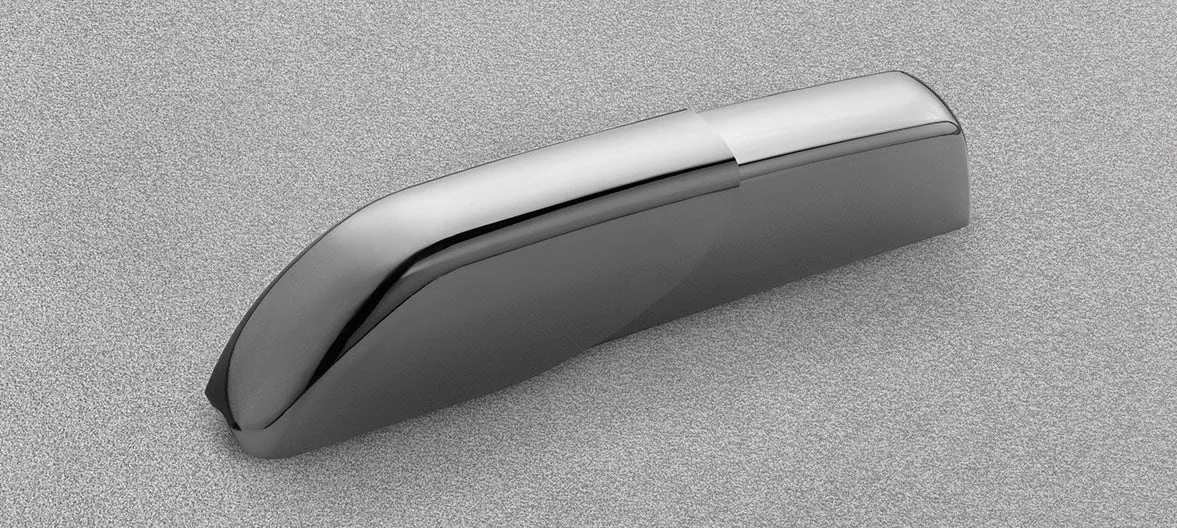

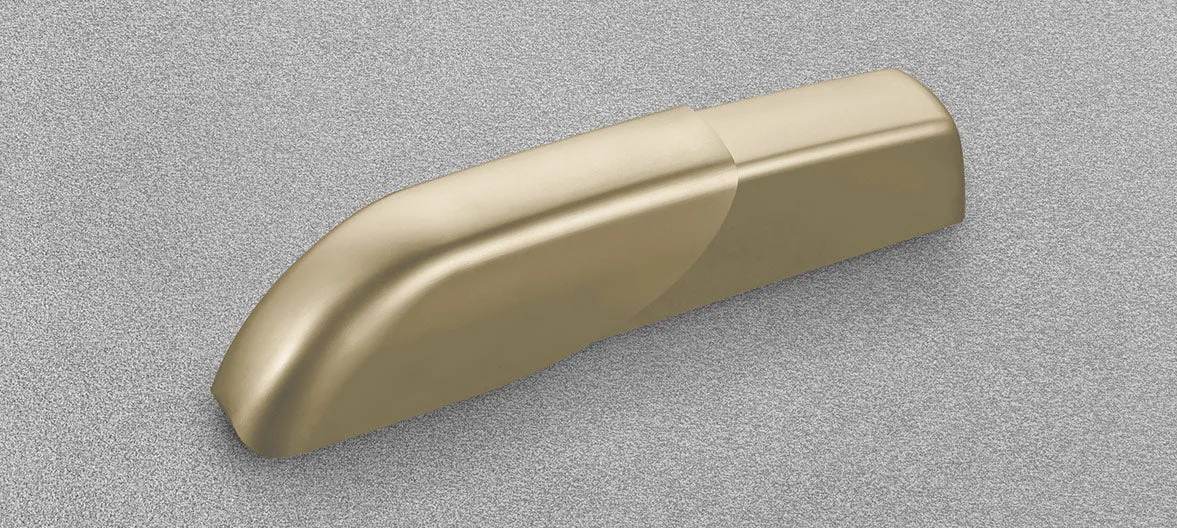

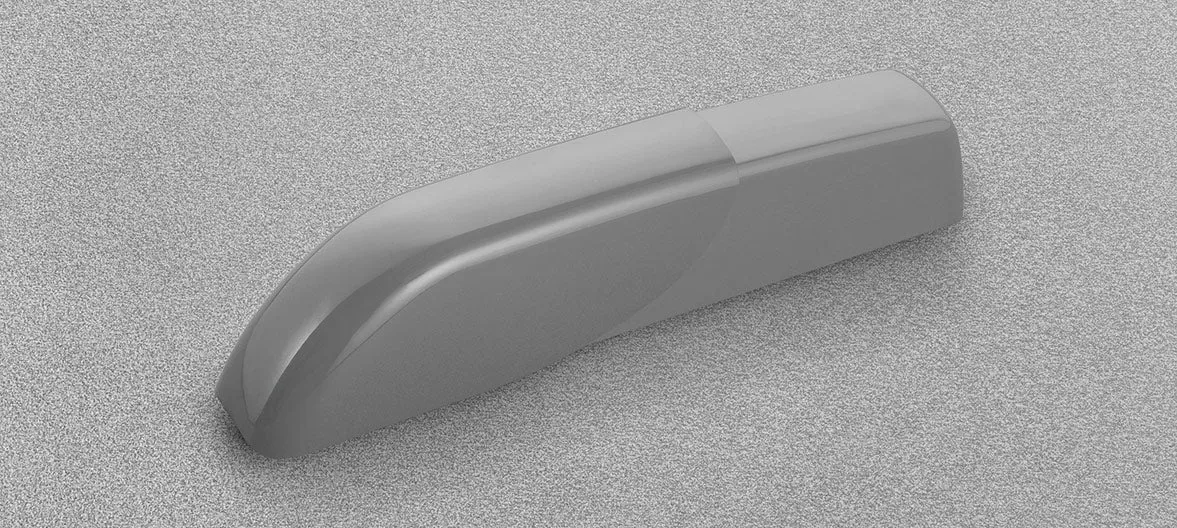

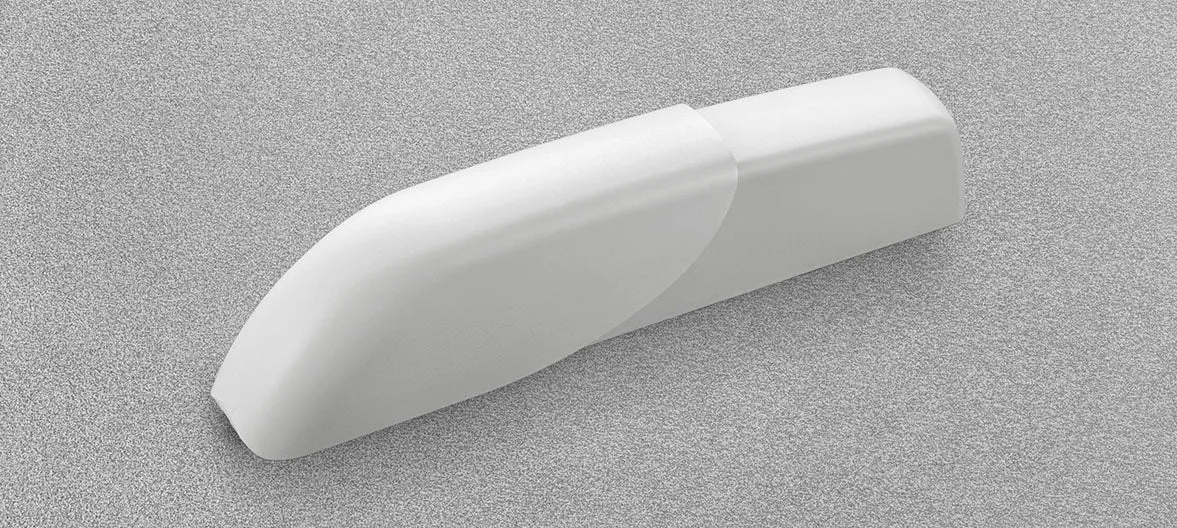

The all-new PACTA SPRUNG hinges from Salice, with integrated Soft-Open mechanism are small and compact and are designed for 'fall' or 'drop' flaps without the need for additional stays or cables.

PACTA confers a decelerated 'SMOVE' opening action and the fall of the door is gradual and controlled. It has a positive sprung closing action.

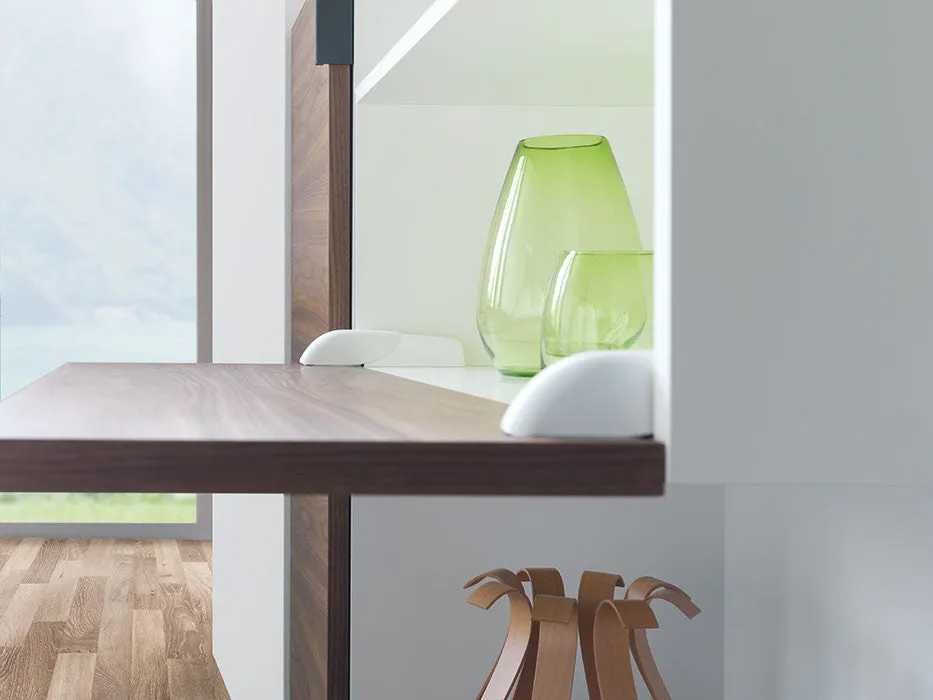

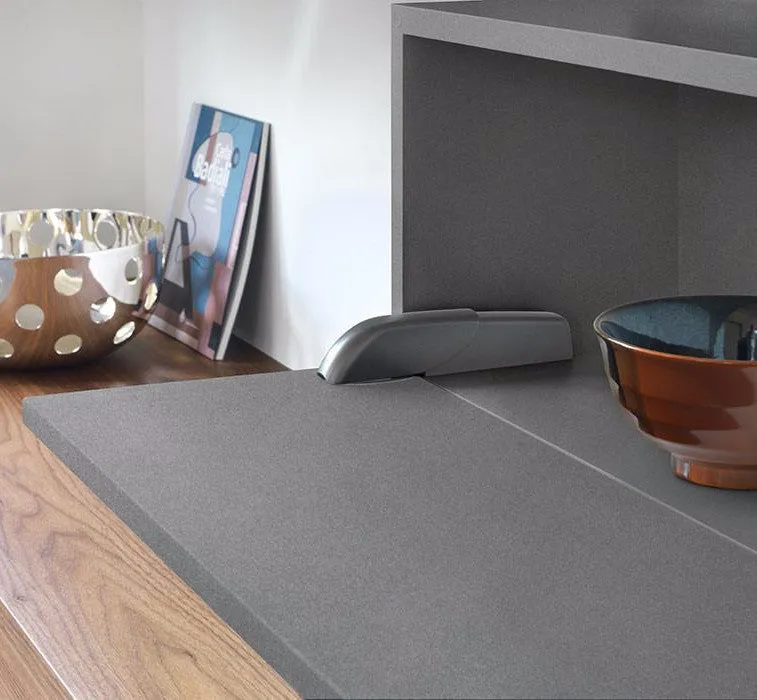

In the fully-open position the door and base panel are fully aligned, creating a uniform and flat surface.

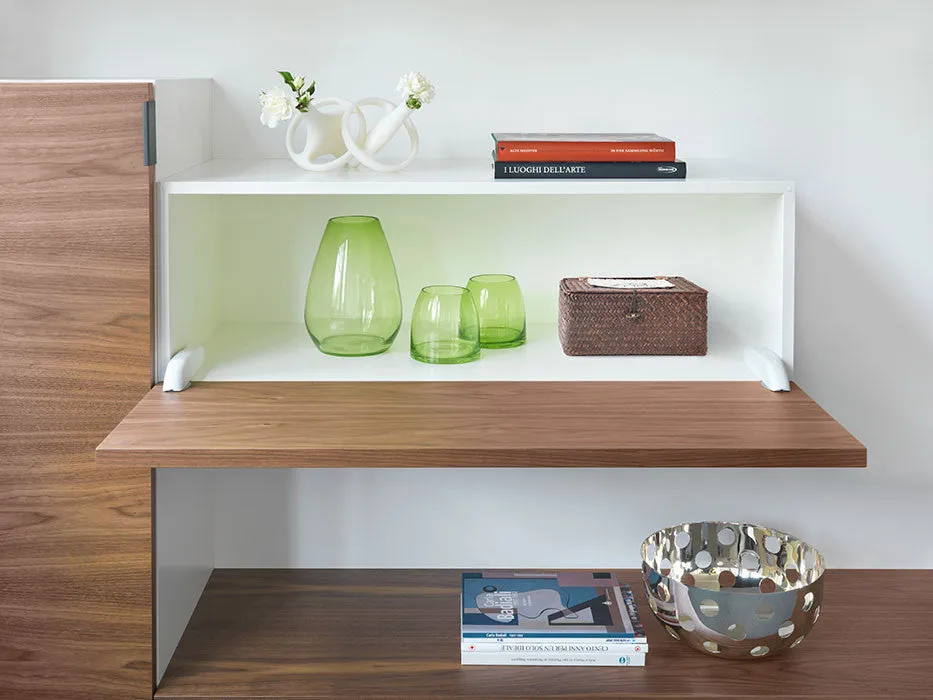

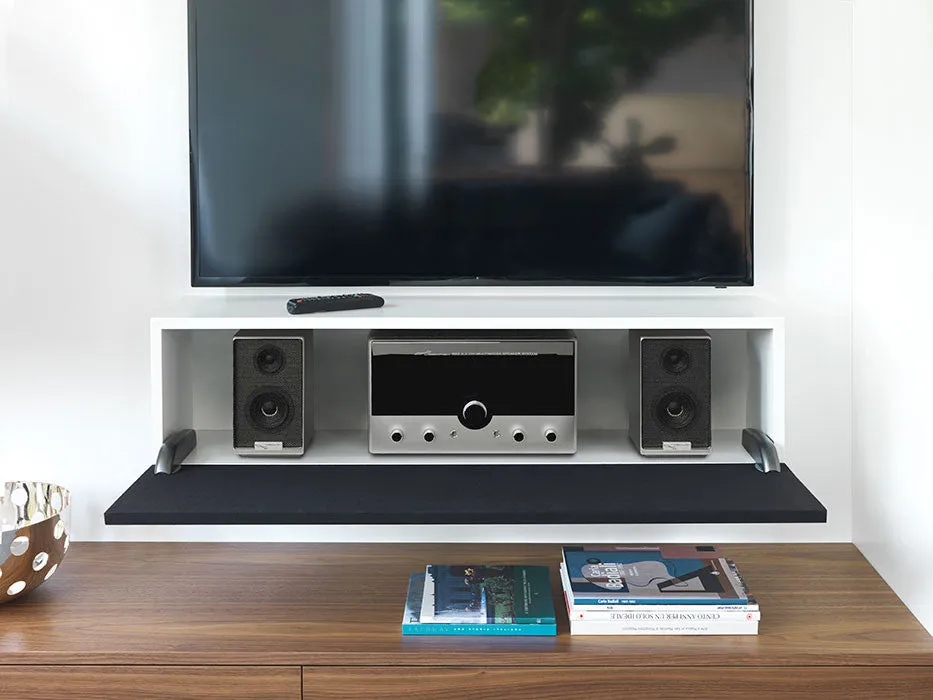

Its applications are numerous; in living room and kitchen cabinets, to create desks in children's furniture or for writing surfaces and table extensions in hotel furniture.

Fully adjustable in 3 directions. Clip-On mount plates included.

For door heights 280mm to 400mm.

For min. 18 mm thick wooden doors.

Available in 3 strengths to suit small, medium or large doors, 1.5kg through to 9.5kg.

* For cabinets over 900mm wide an additional centre hinge is strongly recommended - please see .

Requires standard 35mm dia x 13mm deep drillings for the hinge cup.

90° opening.

Edge drilling distance on the door (K) is fixed at 4.5mm.

Supplied as a bagged set for one door, including fixing screws.

FRBKFEXWSN9 - Soft Opening - Light Doors approx 1.5 to 4.5kg
FRBKFEXISN9 - Soft Opening - Medium Doors approx 3.5 to 6.5kg
FRBKFEXSSN9 - Soft Opening - Heavy Doors approx 4.5 to 9.5kg
